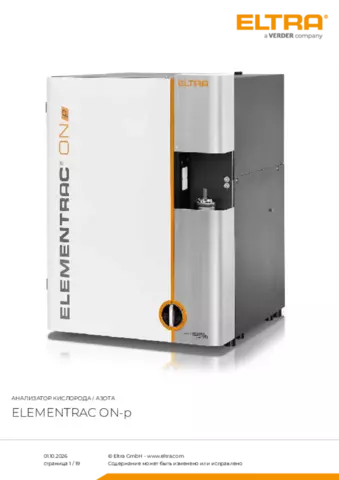

The new ELEMENTRAC ON-p 2 is a powerful and robust elemental analyzer for measurement of oxygen and nitrogen concentrations in inorganic materials like steel, iron, copper or ceramics. The highly sensitive NDIR and thermal conductivity detectors reliably detect element concentrations from low ppm content to high percentages.
The innovative sample port system with pulsed chamber rinsing and vertical sample drop allow for user-friendly and comfortable analysis of rod-shaped, granular or powdery samples with a weight of up to 2 grams.
The ELEMENTRAC ON-p 2 elemental analyzer meets or exceeds the requirements of all relevant international standards such as ASTM E 1019 or DIN EN 3976.
Видео о приборе
Step 1: Logging the sample into the ELEMENTS software
The sample ID is logged into the software and the weight is automatically transferred (see step 2).
Step 2: Weighing and introduction of sample into the port
The ELEMENTRAC ON-p 2 analyzes volumes from a few mg up to 2 grams safely and precisely. Rod-shaped or granular samples can be applied directly. For the elemental analysis of powders, a capsule is recommended which does not have to be sealed.
Step 3: Analysis
The empty graphite crucible is then placed on the lower electrode and the elemental analysis is started via the ELEMENTS software. The software controls all subsequent process steps.
Step 4: Data output and export
120 to 180 seconds after the analysis has started, the measured concentrations are available for export as a report or via LIMS.
The ELEMENTRAC ON-p 2 elemental analyzer is available as a single-element analyzer for oxygen or nitrogen only, or in a multi-element configuration for measuring ON. Whereas oxygen is determined as CO2 in up to two infrared cells, nitrogen is detected in its elemental form in a thermal conductivity cell.
The chemicals and filters required for operation of the elemental analyzer are arranged conveniently on the front panel and can be concealed behind a removable door during routine operation. This arrangement significantly reduces the time required for maintenance and increases user-friendliness. In addition, innovative details considerably improve the reproducibility of measurements.
Innovative sample port & pulsed chamber flushing
The new sample port of the ON-p 2 elemental analyzer ensures comfortable operation and reproducible measured values. Differently shaped materials like solid pieces, granules or powder in capsules can be applied up to a weight of 2000 mg, and are quickly freed from the surrounding atmosphere with the help of pulsed carrier gas flushing in the sample port. Then they drop vertically into the preheated graphite crucible for analysis.
Powerful catalyst
During elemental analysis in the graphite crucible, carbon monoxide (CO) is produced which is converted to carbon dioxide (CO2) in the catalyst and subsequently detected in the IR cells. The easy-to-maintain catalyst with copper oxide filling ensures complete oxidation and thus, reliable oxygen analysis even of difficult materials such as oxides.
Closed gas management
The ELEMENTRAC ONH elemental analyzer series uses a closed gas system in overpressure. This ensures that always 100% of the released sample gas is fed to the detectors which guarantees low detection limits and good reproducibility.
In addition to the integrated solutions of the ELEMENTRAC ON-p 2, further options are available to increase efficiency and extend the application range of your elemental analysis.
Autocleaner
By melting the sample in a graphite crucible at temperatures of up to 3000 °C deposits are generated at the upper electrode and in the furnace chamber which may affect the reproducibility of ONH measurements in a negative way.
The new optional Autocleaner reliably removes these deposits, enabling precise elemental analysis even for high throughputs. Additionally, an efficient gas calibration and cleaning furnace for thorough carrier gas pre-cleaning are available for the elemental analyzer.
The comprehensive Windows-based ELEMENTS software is an essential part of all ELEMENTRAC generation elemental analyzers.
A central window (analysis and results) is the starting point from which all functionalities required for the daily routine are easily accessible. From here it is possible to group and export analyzed samples, or register and analyze new ones. The user may call up various subordinate functionalities like application settings, calibration, diagnosis, or status.
All ELTRA analyzers seamlessly integrate with the Verder Scientific IoT platform, providing enhanced functionality, seamless connectivity, and additional benefits:
Experience the power of the Verder Scientific IoT platform today and unlock the full potential of your ELTRA analyzers!
сплавы, алюминий, зола, карбиды, чугун, керамика, copper, ферросплавы, железо, металлы, ores, огнеупоры, кремний, steel, ...
| Измеряемые элементы | азот, кислород |
| Материал проб | неорганические материалы |
| Направление ввода пробы в печь | вертикальная |
| Подача пробы в печь | графитовый тигель |
| Область применения | керамика, разработки / электроника, сталь / металлургия |
| Печь | импульсная печь (максимальная мощность 8,5 кВт*) с температурой до 3.000 °C |
| Принцип детектирования | метод инфракрасной абсорбции для кислорода, метод теплопроводности газов для азота |
| Типичное время анализа | 120 - 180 с |
| Требуемые реактивы | гидроксид натрия, оксид меди, перхлорат магния |
| Требуемый газ | сжатый воздух, гелий качества 99.995% или лучше, аргон качества 99.995% или лучше (опционально), все газы с давлением 2 - 4 bar |
| Требование к электропитанию | 3 фазы 400 В, 50/60 Гц, макс. 8,500 Вт |
| Размеры (Ш x В x Г) | 57 x 77 x 63 см |
| Вес | ~ 161 кг |
| Требуемое оборудование | ПК, монитор, весы (точность 0.0001г) |
| Опции | внешний чиллер, печь очистки газа-носителя, устройство газовой калибровки |
| Ярлык ATM | * мощность программно ограничена на уровне 6.8 кВт |
The measuring principle of the ELEMENTRAC ON-p 2 elemental analyzer allows for a wide measuring range. To analyze the sample, it is weighed and placed on the sample port. Flushing with carrier gas prevents atmospheric gas (oxygen and nitrogen) from getting into the furnace.
The graphite crucible is outgassed in the impulse furnace of the analyzer to reduce possible contaminations (e.g. residual hydrogen). After a stabilization phase the sample is dropped into the crucible and melts. Carbon monoxide is produced by the reaction of carbon in the graphite crucible and oxygen of the material. Nitrogen and hydrogen are released in its elemental form. The carrier gas (helium) and sample gasses pass through a filter before entering a copper oxide catalyst which converts the CO to CO2.
The CO2 is then measured by infrared cells to determine the oxygen content. CO2 and water are removed chemically and the nitrogen content is measured in the thermal conductivity cell. As an option the less expensive Argon can be used in the elemental analyzer to determinate the oxygen and nitrogen content.
