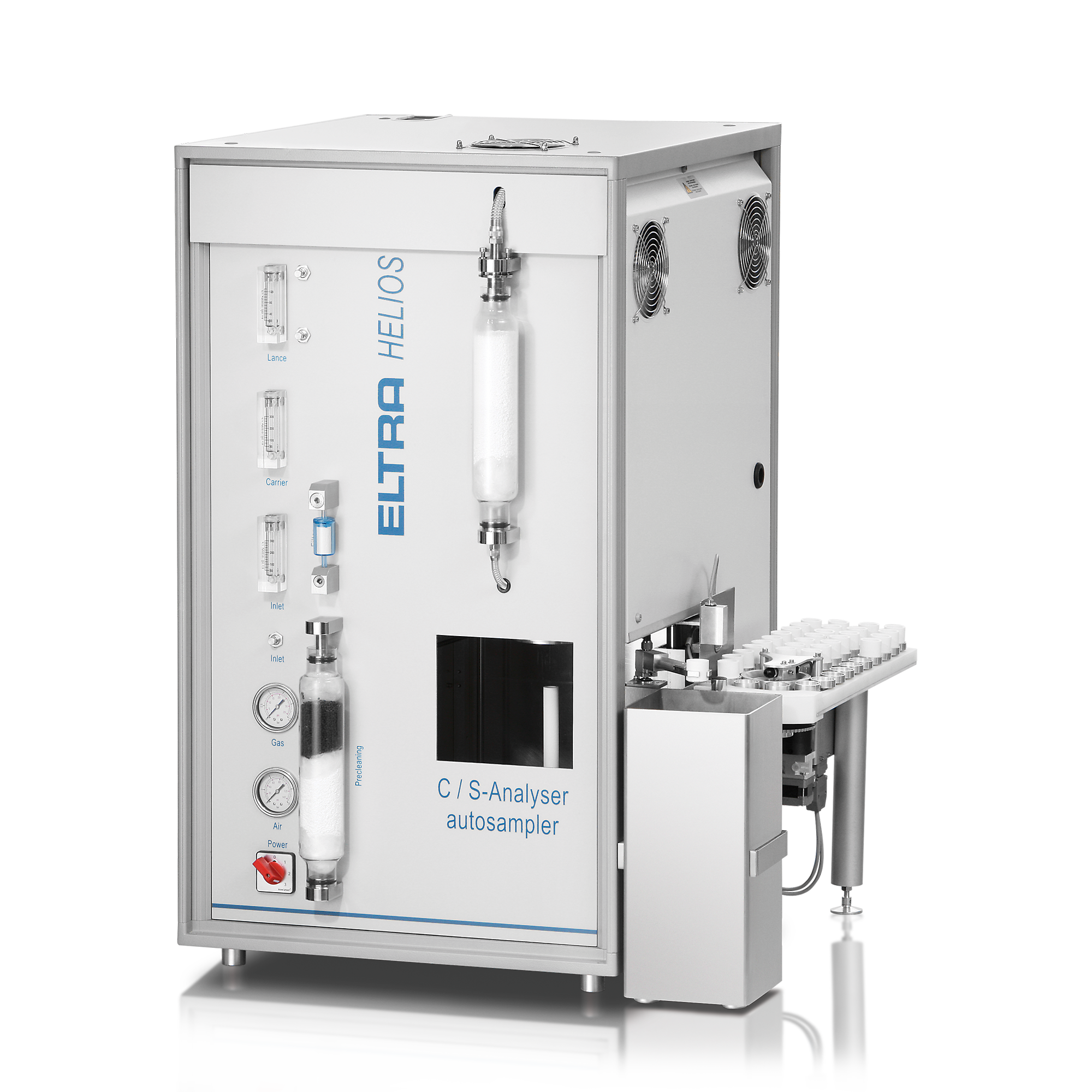

ELTRA CS-580A

(Please order PC, monitor, balance, Autoloader and consumables (starter-kit, anhydrone, sodium hydroxide) separately)

Measuring ranges at 500 mg sample weight

2)

88100-4015

CS-580A

1xC

0.05 – 100% C

88100-4017

CS-580A

2xC

0.005 – 12% C | 12 – 100% C

88100-4018

CS-580A

2xS

0.005 – 2% S | 2 – 20% S

88100-4019

CS-580A	1xC	0.05 – 100% C
	+ 1xS	0.005 – 2% S

88100-4020

CS-580A	1xC	0.05 – 100% C
	+ 2xS	0.005 – 2% S \| 2 – 20% S

88100-4021

CS-580A	2xC	0.005 – 12% C \| 12 – 100% C
	+ 1xS	0.005 – 2% S

88100-4022

CS-580A	2xC	0.005 – 12% C \| 12 – 100 % C
	+ 2xS	0.005 – 2 % S \| 2 – 20% S

Further measuring range combinations on request

Required accessories

PC, Monitor, Balance

88600-0006 Industrial computer

71015 Computer with Intel Core i5-8400 Processor, 256 GB SSD; 8 GB RAM; Windows 10 operating system; keyboard; mouse

88400-0584 Monitor, TFT (23.8")

88600-0002 Balance (resolution 0.0001 g)

88400-0592 Laser printer

14535 Autoloader for 36 crucibles

14535-1001 Autoloader for 36 crucibles, acid resistant

14533 Autoloader for 130 crucibles

14533-1001 Autoloader for 130 crucibles, acid resistant

Required consumables / chemicals for first operations

88500-0005 Starter-kit for 500 analyses CS 580A (500 crucibles, 50 g glass wool, 100 g Combsolid)

90200 Anhydrone (magnesium perchlorate), 454 g 1)

90210 Sodium hydroxide, 500 g 1)

Further options and consumables

Accessories (Hardware)

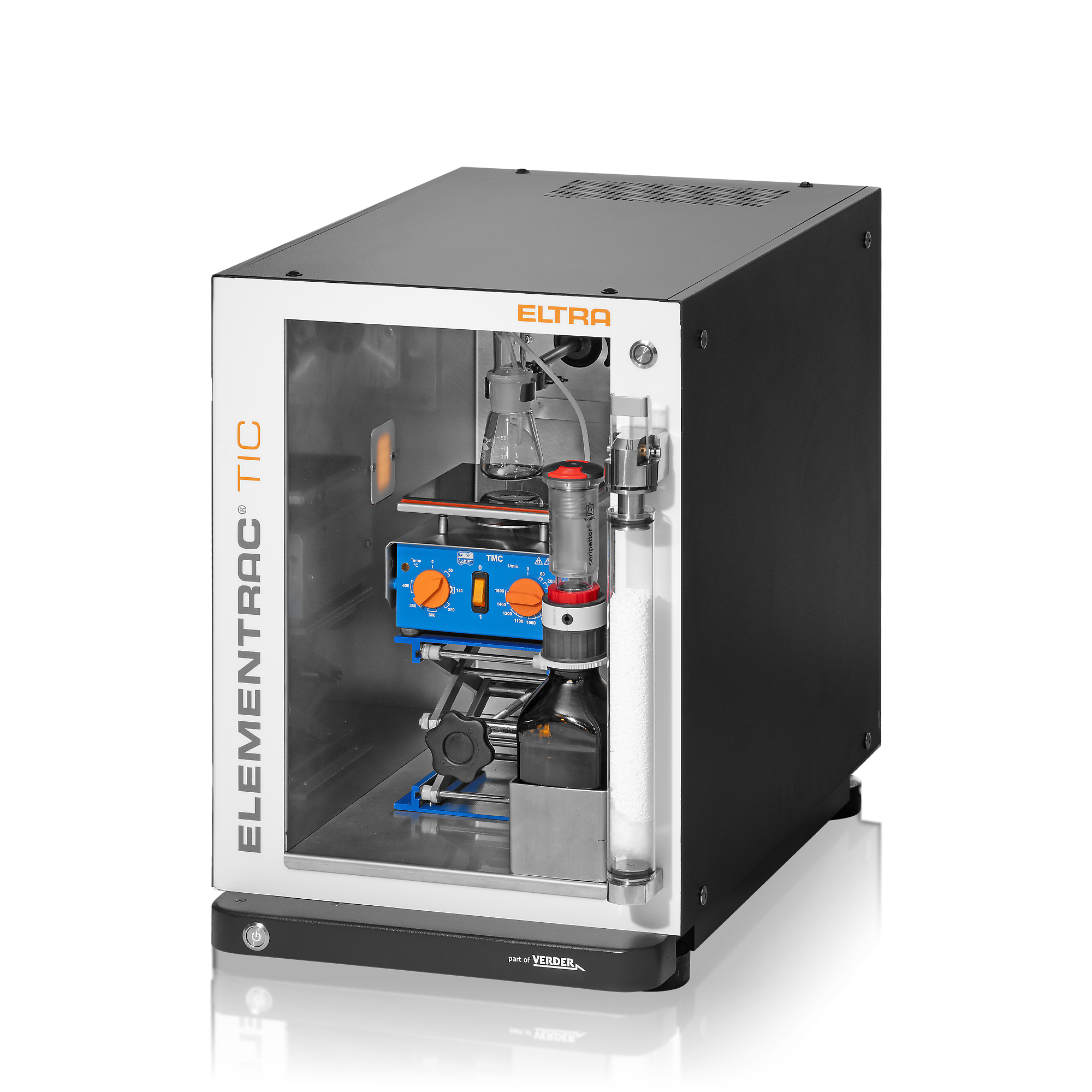

38001 TIC-Module

72070 Oxygen regulator

88400-0610 Barcode scanner

88600-0015 Crucible holder

Chemicals (fillings for glass and quartz tubes)

90200 Anhydrone (magnesium perchlorate), 454 g 1)

90210 Sodium hydroxide, 500 g 1)

90331 Glass wool, 454 g

90332 Glass wool, 50 g

92610 Tube of high vacuum grease, 35 g

88600-0008 Combsolid, 100 g

91000-1005 Copper, flakes, 25 g

90840 Quartz sand, 100 g

88400-0508 Steel wool

Crucibles

90149 Ceramic crucibles, premium, Ø 1”,
foil-wrapped, 1,000 pieces

90148 Ceramic crucibles, premium, Ø 1”,
bagged, 1,000 pieces

88400-0176 Ceramic filtering crucibles, 100 pieces

88400-0142 Filtering crucibles, 100 pieces, small version

Reagent tubes

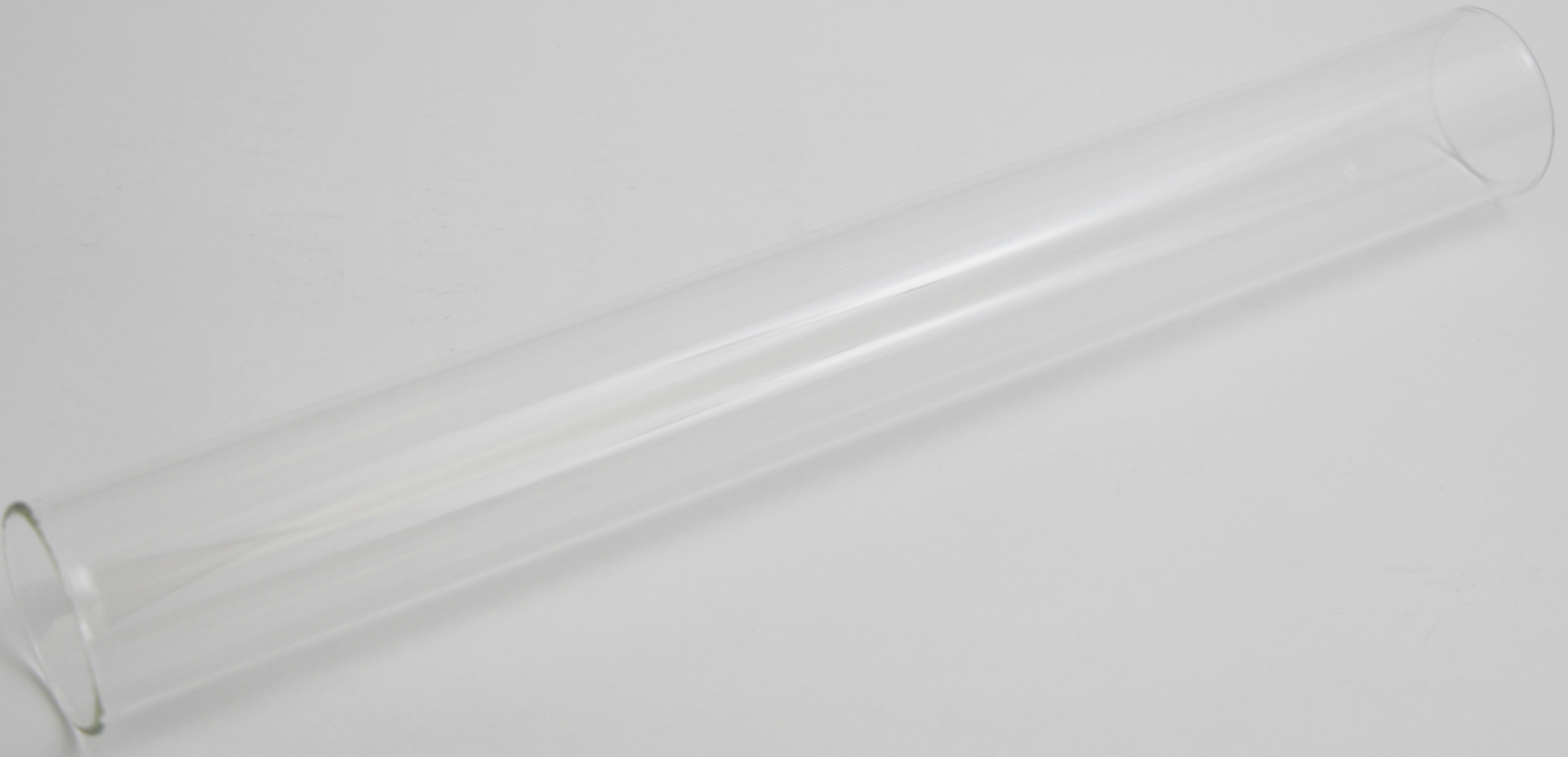

09090 Reagent tubes 32 x 280 mm, 1 piece

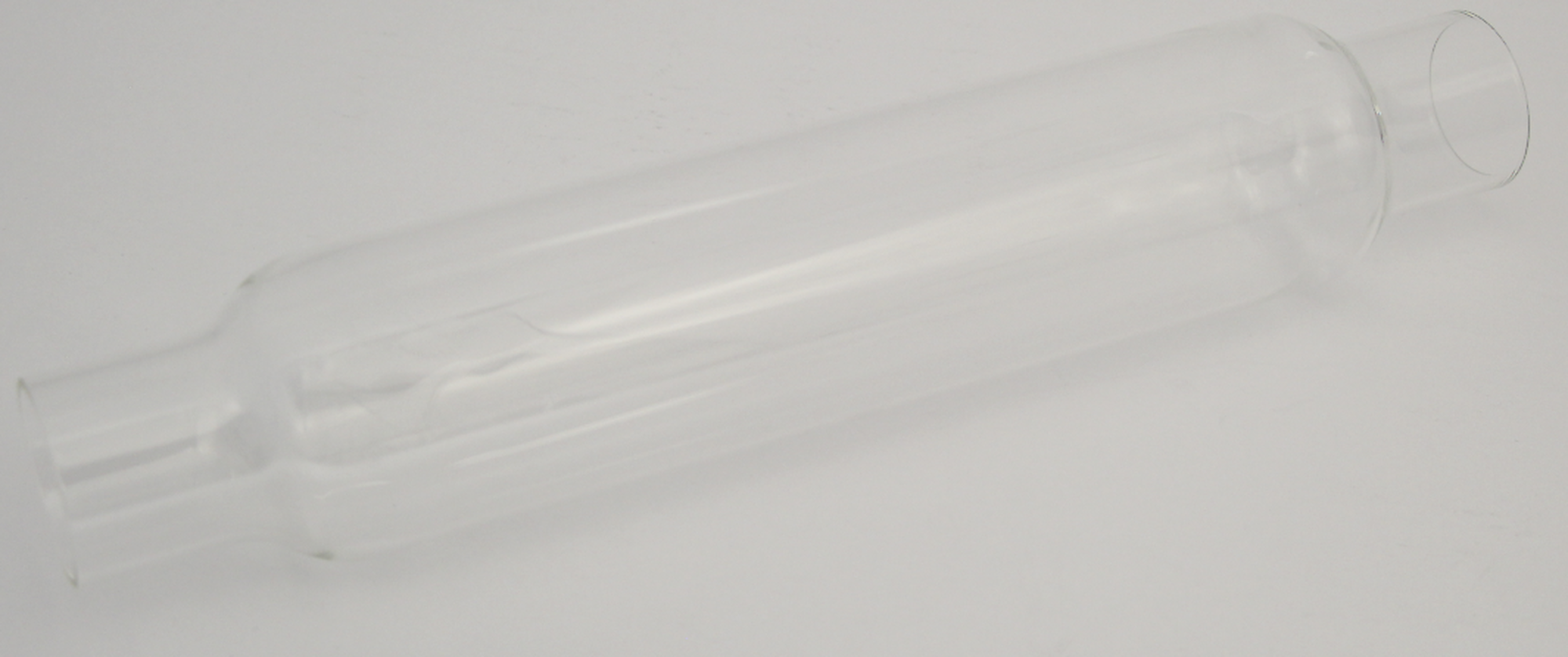

09092 Reagent tube XL size, 54 x 36 x 280 mm

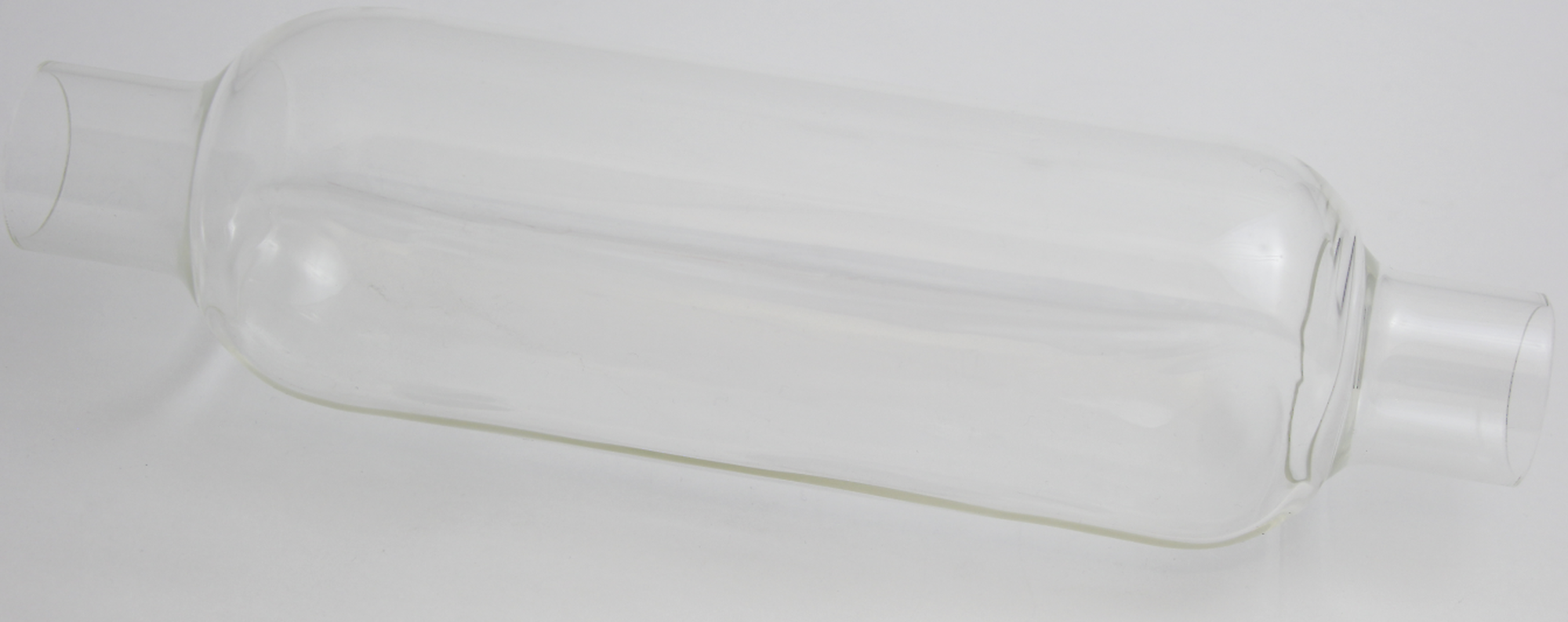

09093 Reagent tube XXL size, length 280 mm

Tools for operation: Spatulas, tweezers, tongs and other

88400-0229 Tweezers (160 mm), curved, 1 piece

88400-0472 Tweezers (145 mm), straight, 1 piece

88400-0475 Set with 6 spatula and 1 tweezers

88400-0477

Weighing boat, 1 piece

for weighing and usage of granulates

88400-0517 Transfer pipettes for applying liquids, 3 ml, 500 pieces

88400-0509

Metal pan, 1 piece

for storage of used crucibles, boats

90145 Tongs for ceramic crucibles and boats, 220 mm, 1 piece

90146 Steel pot for preheated crucibles and used crucibles

Tools for maintenance

35400-8000 Maintenance kit CS-580A

71010 Brush, 16 mm, 1 piece, for cleaning balance from dust

88400-0473 Powder funnel (plastics), 1 piece, for easy filling of chemical tubes

88400-0490 Rubber plug 29 x 35 x 30 mm, 1 piece, for sealing big glass tubes like 09090

88600-0026 Anhydrone filter tube

Calibration materials

Calibration materials may show slight variations depending on the current lot.
To see the current certification please visit www.ELTRA.com.

Coal: certified sulfur content

92511-3005 Coal, 50 g, < 0.1 % S

92511-3010 Coal, 50 g, 0.1 – 0.5 % S

92511-3020 Coal, 50 g, 0.5 – 1.0 % S

92511-3030 Coal, 50 g, 1.0 – 1.5 % S

92511-3040 Coal, 50 g, 1.5 – 2.0 % S

92511-3050 Coal, 50 g, 2.0 – 3.0 % S

92511-3060 Coal, 50 g, 3.0 – 4.0 % S

92511-3070 Coal, 50 g, 4.0 – 5.0 % S

92511-3080 Coal, 50 g, >5.0 % S

Coal, premium, C/H/N/S, ash, volatile content, certified

92550-3010 Coal, premium, 50 g, < 1.0 % S

92550-3020 Coal, premium, 50 g, ~ 1 % S

92550-3040 Coal, premium, 50 g, 1.0 – 3.0 % S

92550-3060 Coal, premium, 50 g, > 3.0 % S

Coke, premium, C/H/N/S, ash, volatile content, certified

92560-3010 Coke, premium, 50 g

Pet coke, premium, C/H/N/S, ash, volatile content certified

92570-3020 Pet coke, premium, 50 g, ~ 1 % S

92570-3040 Pet coke, premium, 50 g, ~ 1 % S

Other

90812-3001 Limestone, 25 g, 0.04 % S

90812-3002 Limestone, 25 g, 0.4 % S

90812-3003 Limestone, 25 g, < 5 % C

90812-3004 Limestone, 25 g, 5 – 10 % C

90817-3001 Soil, 25 g, > 2 % C, S

90817-3002 Soil, 25 g, < 1 % C, S

90817-3003 Soil, 25 g, > 2 % C, S

90817-3004 Soil, 25 g, > 2 % C, S

91900-1001 Ore, 30 g, ~1.4 % S

91900-1002 Ore, 30 g, ~4.2 % S

91900-1003 Ore, 30 g, ~3 % S

Primary substances for calibration

90710-3010 EDTA, 50 g

90710-3030 Sucrose, 50 g

90810 Calcium carbonate, 100 g

90821 Barium sulphate, 50 g

90824 Sulfanilic acid, 50 g

91900-2001 Zinc sulfide, 50 g, 32 % S

Liquid calibration material

92530 Oil, 100 ml

90860 Glycerine, 100 g

Please note: Every analyzer requires PC, monitor, balance and some consumables (crucibles, chemicals) which have to be ordered separately

1), Hazardous material

2), Measuring ranges may vary depending on sample weight and sample material
