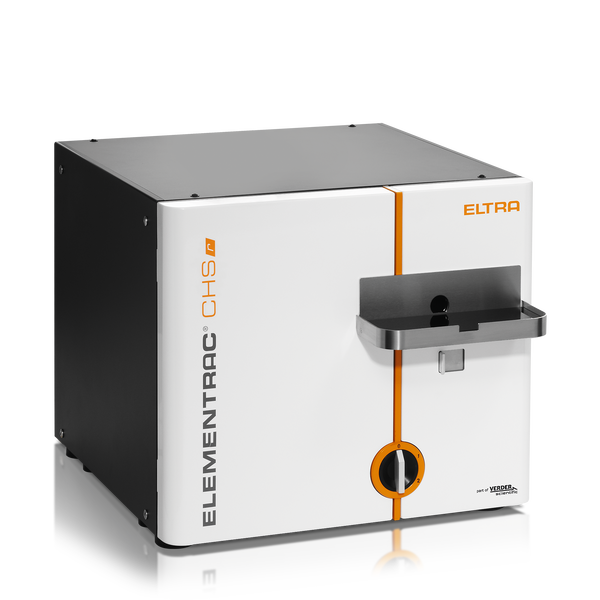

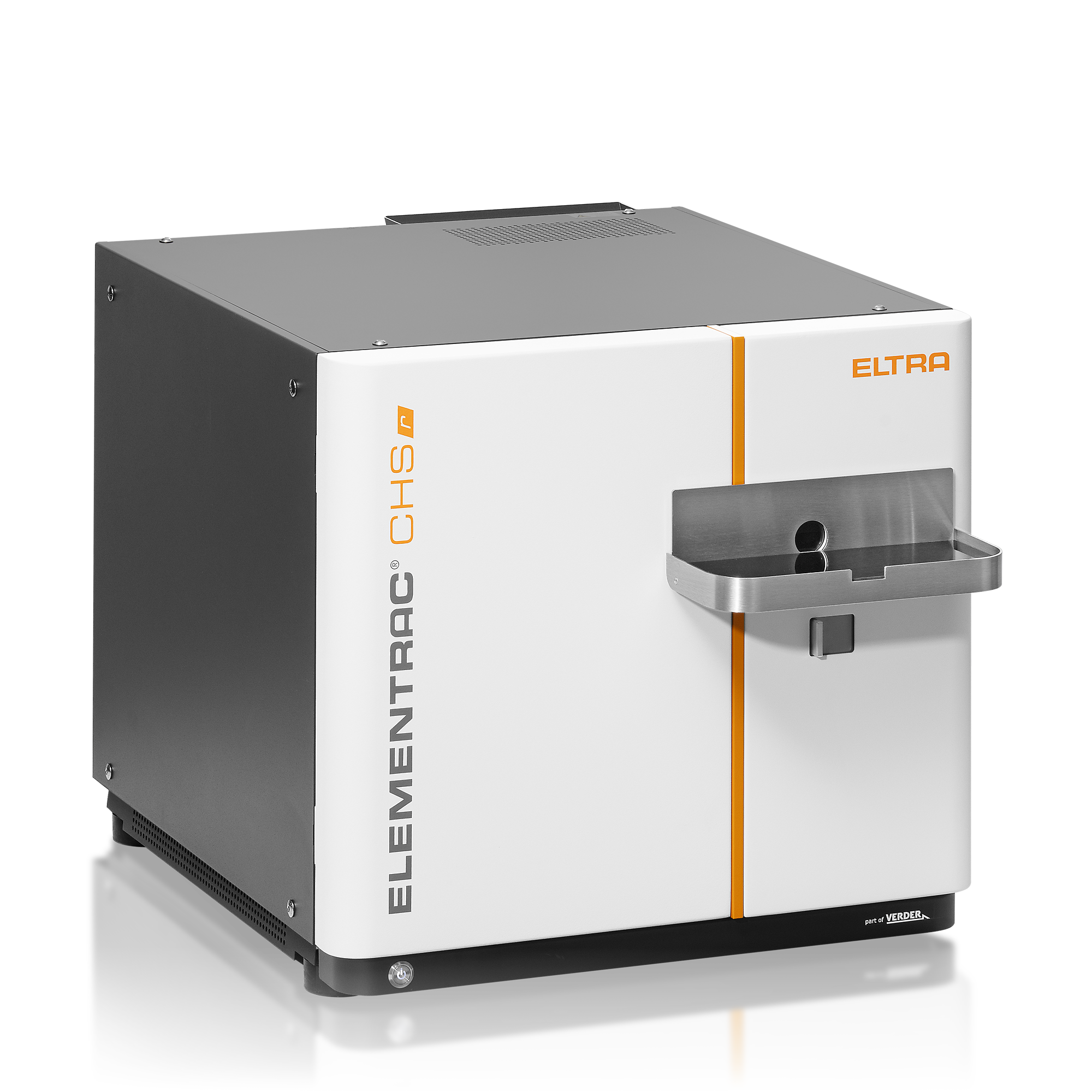

Carbon / Sulfur Analyzer ELEMENTRAC CHS‑r

Carbon / Hydrogen / Sulfur Analyzer ELEMENTRAC CHS-r

With the list below, you may request a free, non-binding quote.

Please select the items you would like to include by adding them to your inquiry list. You may choose items from any product page.

Your inquiry list will be visible in the upper right corner of the website.

General Inquiry

Not sure which items you need or you prefer a general quote?

Send us a general inquiry

ELTRA ELEMENTRAC CHS-r

Measuring ranges at 350 mg sample weight (alternative configurations on request)

2)

88200-3100

CHS-r	1xC	0.03 – 100 % C
	+ 1xH	0.002 – 4.2 % H
	+ 1xS	0.001 – 1.14 % S

88200-3101

CHS-r	1xC	0.03 – 100 % C
	+ 1xH	0.002 – 4.2 % H
	+ 1xS	0.01 – 3.42 % S

88200-3102

CHS-r	1xC	0.03 – 100 % C
	+ 1xH	0.002 – 4.2 % H
	+ 1xS	0.005 – 2.28 % S

88200-3103

CHS-r	1xC	0.004 – 21 % C
	+ 1xH	0.002 – 4.2 % H
	+ 1xS	0.001 – 1.14 % S

88200-3109

CHS-r	1xC	0.03 – 100 % C
	+ 1xH	0.002 – 4.2 % H
	+ 1xS	0.05 – 31.4 % S

Further measuring range combinations on request

Required accessories

PC, Monitor, Balance

88600-0006 Industrial computer

71015 Computer with Intel Core i5-8400 Processor, 256 GB SSD; 8 GB RAM; Windows 10 operating system; keyboard; mouse

88400-0584 Monitor, TFT (23.8 inch)

88600-0002 Balance (resolution 0.0001 g)

88400-0592 Laser printer

Required consumables / chemicals for first operations

88500-0004 ELEMENTRAC CHS-r Starter-kit for 500 analyses (500 disposable porcelain boats, 50 g glass wool, 50 re-usable boats, 100 g Combsolid)

90200 Anhydrone (magnesium perchlorate), 454 g 1)

90210 Sodium hydroxide, 500 g 1)

Further options and consumables

Chemicals (fillings for glass and quartz tubes)

90200 Anhydrone (magnesium perchlorate), 454 g 1)

90210 Sodium hydroxide, 500 g 1)

90331 Glass wool, 454 g

90332 Glass wool, 50 g

92610 Tube of high vacuum grease, 35 g

88600-0008 Combsolid, 100 g 1)

91000-1005 Copper, flakes, 25 g

90840 Quartz sand, 100 g

88400-0508 Steel wool

Boats

90160 Disposable porcelain boats 86 x 13 x 10 mm, 1000 pieces

90153 Re-usable ceramic boats, premium, 58 x 22 x 14 mm, 500 pieces

88600-0011 Re-usable ceramic boats, 95 x 13 x 10 mm, 500 pieces

88400-0502 Re-usable inconel boat, 54 x 18 x 13.5 mm, 1 piece

88400-0503 Re-usable inconel boat, 54 x 18 x 9 mm, 1 piece

Tools for operation: Spatulas, tweezers, tongs and other

88400-0229 Tweezers (160 mm), curved, 1 piece

88400-0472 Tweezers (145 mm), straight, 1 piece

88400-0475

Set with 6 spatula and 1 tweezers

for multiple weighing procedures

90145 Tongs for ceramic crucibles and boats, 220 mm, 1 piece

88600-0009 Screen glass with edge guard

88400-0499 Safety glasses

36216-2001 Combustion boat insertion stick, 1 piece

36218-2001 Combustion boat removing stick, 600 mm, 1 piece

Tools for storage, transporting and weighing

88400-0477

Weighing boat, 1 piece

for weighing and usage of granulates

88400-0517

Transfer pipettes

for applying liquids, 3 ml, 500 pieces

88400-0509

Metal pan, 1 piece

for storage of used crucibles, boats

Tools for maintenance

88400-0473

Powder funnel (plastics), 1 piece

for easy filling of chemical tubes

88400-0490

Rubber plug 29 x 35 x 30 mm, 1 piece

for sealing big glass tubes like 09090

71010

Brush, 16 mm, 1 piece

for cleaning balance from dust

88600-0026

Anhydrone filter tube

glass tube filled with Anhydrone

1)

Calibration materials

Calibration materials may show slight variations depending on the current lot.
To see the current certification please visit www.ELTRA.com.

Coal: certified sulfur content

92511-3005 Coal, 50 g, <0.1 % S

92511-3010 Coal, 50 g, 0.1 – 0.5 % S

92511-3020 Coal, 50 g, 0.5 – 1.0 % S

92511-3030 Coal, 50 g, 1.0 – 1.5 % S

92511-3040 Coal, 50 g, 1.5 – 2.0 % S

92511-3050 Coal, 50 g, 2.0 – 3.0 % S

92511-3060 Coal, 50 g, 3.0 – 4.0 % S

92511-3070 Coal, 50 g, 4.0 – 5.0 % S

92511-3080 Coal, 50 g, >5.0 % S

Coal, premium, C/H/N/S, ash, volatile content, certified

92550-3010 Coal, premium, 50 g, ~ 1 % S

92550-3020 Coal, premium, 50 g, ~ 1 % S

92550-3040 Coal, premium, 50 g, 1.0 – 3.0 % S

92550-3060 Coal, premium, 50 g, > 3.0 % S

Coke, premium, C/H/N/S, ash, volatile content, certified

92560-3010 Coke, premium, 50 g

Pet coke, premium, C/H/N/S, ash, volatile content certified

92570-3020 Pet coke, premium, 50 g, ~ 1 % S

92570-3040 Pet coke, premium, 50 g, ~ 1 % S

Other

90812-3001 Limestone, 25 g, 0.04 % S

90812-3002 Limestone, 25 g, 0.4 % S

90812-3003 Limestone, 25 g, < 5 % C

90812-3004 Limestone, 25 g, 5 – 10 % C

90817-3001 Soil, 25 g, > 2 % C, S

90817-3002 Soil, 25 g, < 1 % C, S

90817-3003 Soil, 25 g, > 2 % C, S

90817-3004 Soil, 25 g, < 2 % C, < 1 % S, <2 % C; <1 % S

91900-1001 Ore, 30 g, ~1.4 % S

91900-1002 Ore, 30 g, ~4.2 % S

91900-1003 Ore, 30 g, ~3 % S

Primary substances for calibration, 32 % S

90710-3010 EDTA, 50 g

90710-3030 Sucrose, 50 g

90810 Calcium carbonate, 100 g

90821 Barium sulphate, 50 g

90824 Sulfanilic acid, 50 g

91900-2001 Zinc sulfide, 50 g, 32 % S

Liquid calibration material

92530 Oil, 100 ml

90860 Glycerine, 100 g

Please note: Every analyzer requires PC, monitor, balance and some consumables (crucibles, chemicals) which have to be ordered separately

1), Hazardous material

2), Measuring ranges may vary depending on sample weight and sample material
